STAGAC W01
Gas injector
Rodzaj paliwa autogaz: LPG i CNG
Czas gwarancji: 2 lata bez limitu kilometrów
Dostępne ilości sekcji: 3, 4
Normy i homologacje: E8 67R-01 0973, E8 110R-00 0044
Produkt spełnia wymagania Regulaminu EKG ONZ.
Normy i homologacje: ISO 15500

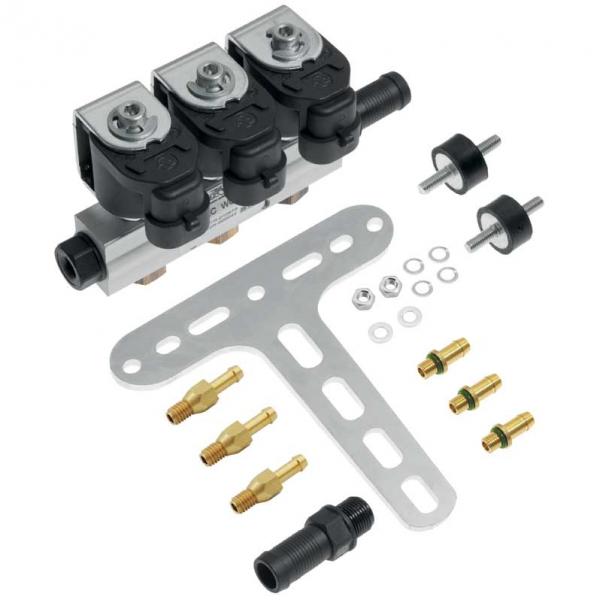

Indeks AC W-01 3-CYL.: WGM2030AH

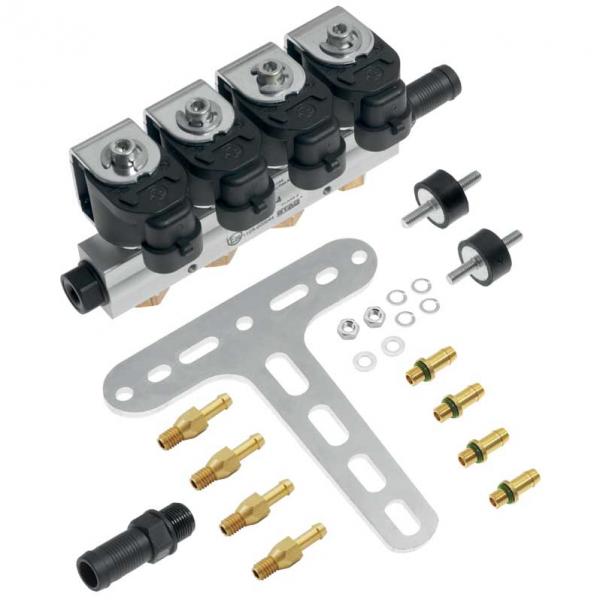

Indeks AC W01 4-CYL.: WGM2040AH
Description
Wtryskiwacz gazu STAG AC przeznaczony jest do samochodowych instalacji sekwencyjnego wtrysku gazu w pojazdach z silnikiem spalinowym. Zapewnia precyzyjne dawkowanie odparowanego gazu do kanału dolotowego silnika.
| Feature | Benefit |
|---|---|
| Maintenance-free | No adjustment required |
| Extended service life | Tested over distances up to 200,000 km |
| Reliable solution | Long-standing presence on the market – a refined product |
Features
- Stable operation
- A coil with a resistance of 2Ω, which does not place an excessive load on the control circuits
- Coils equipped with connection terminals rated IP67
- High resistance to contamination
- Trouble-free starting in cold weather
Assembly as recommended by the manufacturer
LPG i CNG
STAG QBOX PLUS, STAG QNEXT PLUS, STAG QMAX PLUS, STAG QMAX BASIC
STAG QBOX BASIC, STAG GoFast, STAG DIESEL, STAG 400 DPI
LPG
STAG R01 TYP 150, STAG R01 TYP 250 STAG R02, STAG R02 TWIN STAG R02 EL
LED 600
LED 300/401B, LED 300
LED 500, LED 401, LED GoFast
Technical Materials
Dane techniczne
AC W01
| Gas flow rate through the section at a pressure of 1.2 bar [l/min] | 125 |
| Opening time at 1.2 bar [ms] | 2.3 |
| Closing time at 1.2 bar [ms] | 1.4 |
| Operating pressure [bar] | 0.95–1.2 |
| Maximum operating pressure [bar] | 4.5 |
| Power range [HP/cylinder] (adjustable via nozzles) | 3.5–45.0 |
| Power range [kW/cylinder] (adjustable via nozzles) | 2.6 to 33.1 |
| Coil resistance [Ω] | 2.0 ± 0.1 |
| Supply voltage [V] | 12 to 16 |
| Operating temperature [°C] | -20 to +120 |
| Gas inlet – connection [mm] | Ø 12 |
| Gas outlet – connection [mm] | Ø 6 |
| Service life [km] – city cycle – highway cycle | 100,000 200,000 |
| Overall dimensions with connectors [mm] | |
| Length: | |
| 4 cylinders | 150 |
| 3 cylinders | 123 |
| 2 cylinders | 96 |
| width x height (4, 3, 2 cylinders) | 45 x 79 |
| Weight with nozzles [g] | |
| 4 cylinders | 480 |
| 3 cylinders | 360 |
| 2 cylinders | 240 |
Additional materials
| Part Name | Part number |
|---|---|
| ACW01 - 3 sections | WGM-80AB-3 |
| ACW01 - 4 sections | WGM-80AB-4 |
| Piston stroke calibrators are available for repair kits | WEG-50AH- |
