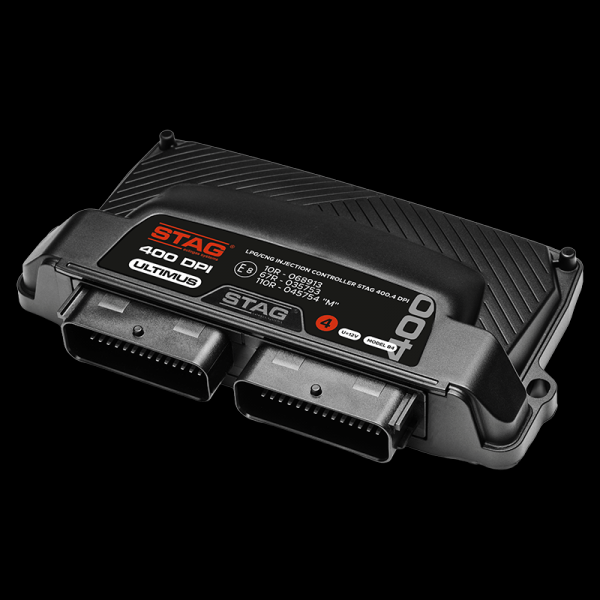

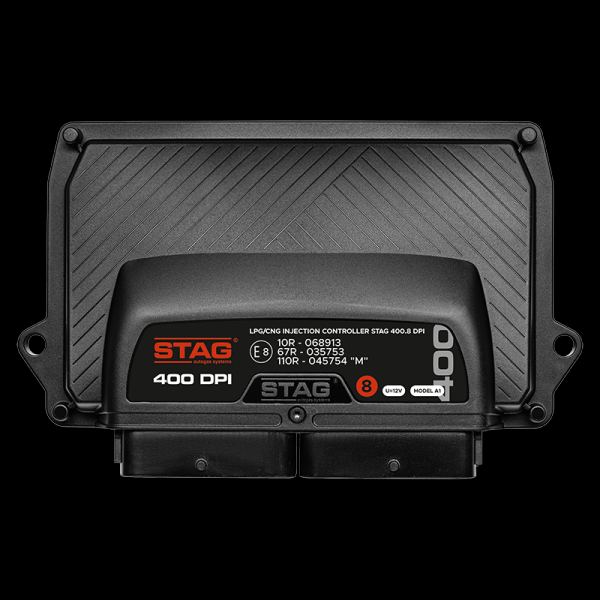

STAG400 DPI
ATTENTION INSTALLERS:
The installation manual for theSTAG400DPI controller, including installation guidelines for vehicles with different engine codes, is available here.
Autogas controller
Rodzaj silnika: bezpośredni wtrysk paliwa
Maksymalna ilość cylindrów: 8
Rodzaj paliwa autogaz: LPG i CNG
Czas gwarancji sterownika: 3 lata
Normy i homologacje: E8 67R-01 5753, E8 10R-05 8913, E8 110R-00 5754
Indeks STAG 400-8: WEG-AMA004409999-300 ZESTAW STAG 400-4 VE/-/-
Indeks STAG 400-6: WEG-AMA004609999-300 ZESTAW STAG 400-6 VE/-/-
Indeks STAG 400-4 B1: WEG-AMA004409999-400
Indeks STAG 400-4 B2: WEG-AMA004419999-400
Indeks STAG 400-4 B3: WEG-AMA004419999-403
Indeks STAG 400- 4 B4 ULTIMUS WEG-AMA004109999-404
Description
STAG 400 DPI to nowoczesny sterownik sekwencyjnego wtrysku gazu, który umożliwia zasilanie gazowe wybranych modeli samochodów z bezpośrednim wtryskiem paliwa.
| Feature | Benefit |
|---|---|
| Versatility | A simple and quick way to convert direct-injection engines |
| Precise fuel metering | Across the entire RPM range with minimal fuel consumption |
| Maintenance of key engine operating parameters | Engine performance comparable to that of a fully gasoline-powered engine |
Features
- OBD auto-adaptation with support for equipped systems,
- to one or two banks
- Comprehensive self-diagnostic system
- Integrated gasoline pressure simulator
- Dedicated gasoline injector emulators:
- ISE-Q (Audi, with engines designated CALB),
- ISE-D4 (Toyota with a D4 engine),
- ISE-VK (Nissan and Infiniti models with VK engines)
- Support for additional injections
- Reading ECU adjustments
- Viewing operating parameters on an oscilloscope
- User-friendly calibration software
- Communication with OBD II/EOBD
- Straight connector: 90-pin
- Bluetooth connectivity
- Integration with a data logger
- Support for the StagMobile mobile app
Assembly as recommended by the manufacturer
LPG
STAG R01 TYP 150, STAG R01 TYP 250, STAG R02, STAG R02 TWIN, STAG R02 EL
LPG
STAG AC W01, STAG AC W01 BFC, STAG AC W02, STAG AC W02 BFC,
STAG AC W03, STAG AC W03 BFC, STAG ACW-012
LED 600
LED 500
LED 401
