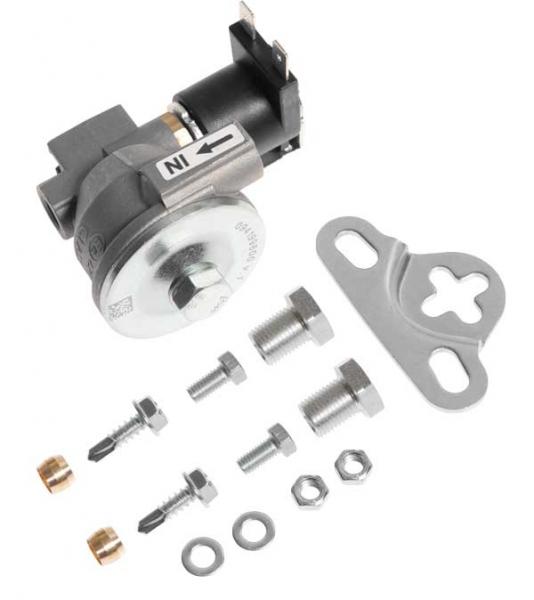

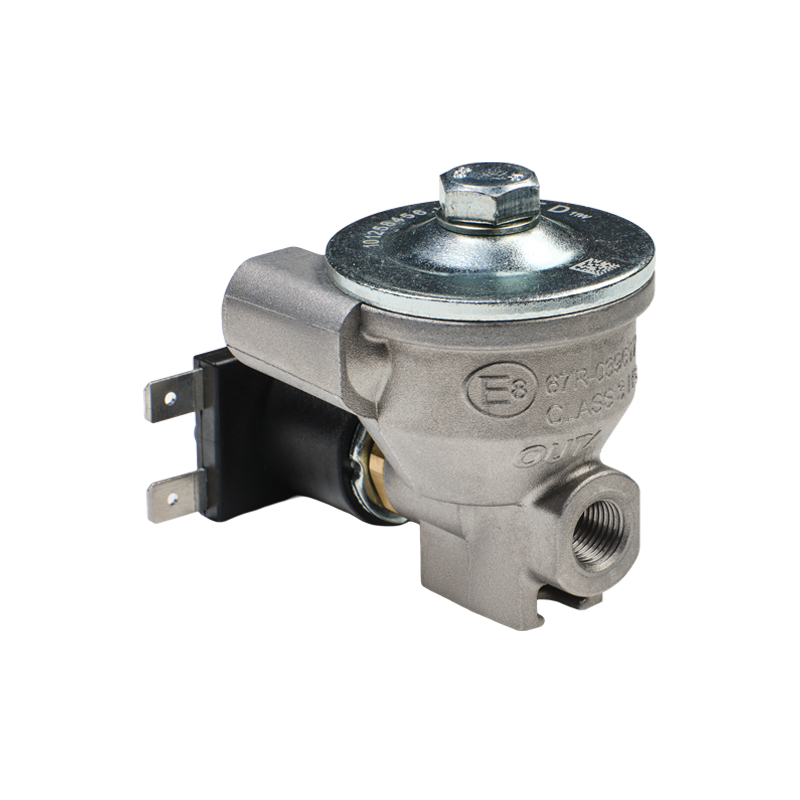

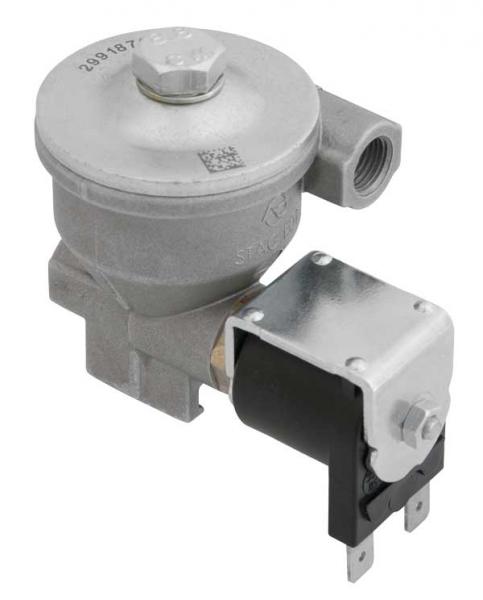

Solenoid Valve STAG E-01
A compact, reliable, and easy-to-maintain LPG solenoid valve. Thanks to its simple design, it ensures long-lasting and trouble-free operation of the gas system.
Specifications
Autogas fuel type: LPG
Warranty period: 2 years with unlimited mileage
Standards and approvals: E8 67R-01 9617
| Feature | Benefit |
|---|---|
| Maintenance Speed | No need to remove the solenoid valve from the high-pressure LPG circuit when replacing the liquid phase filter |
| Maintenance speed | Filter replacement after unscrewing a single central bolt |
| Ease of installation | Designed for connection to thermoplastic and copper hoses |
| Compatibility | Designed to work with all regulatorsSTAG, including those from competitors |
Features:
- It is used to control the flow of gas
- Designed for use with thermoplastic hoses
- Easy to maintain
| Technical Specifications | STANDARD | BFC |
|---|---|---|
| Rated voltage | 12V | 12V |
| Nominal coil power | 11W | 11W |
| Socket hole diameter | 4.5 mm | 4.5 mm |
| Piston stroke | 1.5 mm | 1.5 mm |
| Inlet/outlet diameter | M10x1 | M12x1 |
