STAGR01
Gas regulator
Rodzaj paliwa autogaz: LPG
Czas gwarancji reduktora: 2 lata bez limitu kilometrów

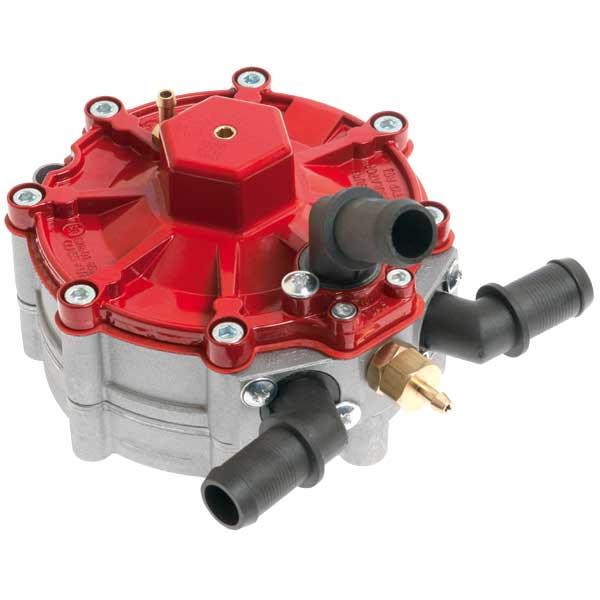

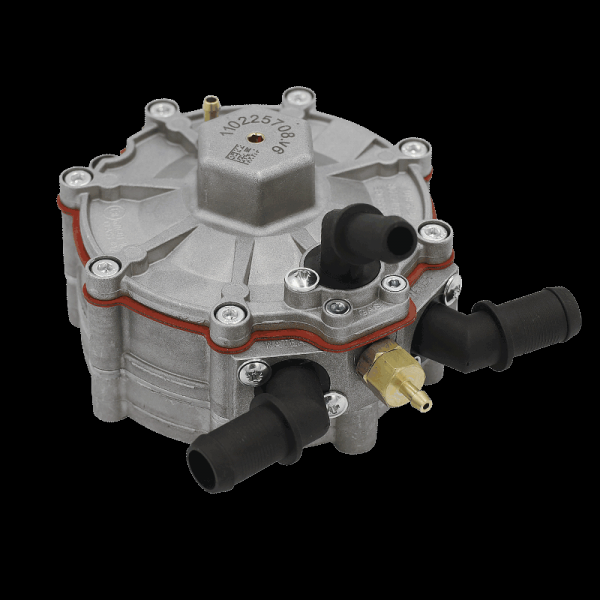

Dedykowany do silników o mocy: 180 KM (szary) lub do 250 KM (czerwony), w tym TURBO
Normy i homologacje: E8 67R-01 4619
Produkt spełnia wymagania Regulaminu EKG ONZ.
Description
Jednostopniowy, membranowy reduktor STAG przeznaczony jest
do samochodowej instalacji sekwencyjnego wtrysku gazu w fazie lotnej. Urządzenie redukuje ciśnienie napływającego ze zbiornika gazu LPG i powoduje jego przejście w fazę gazową (odparowanie).
| Feature | Benefit |
|---|---|
| Stable pressure | Smooth and dynamic ride with optimal fuel economy |
| Thermal stability | Maintains constant throttle response under high engine loads |
| Refined design | Complete casting tightness (up to 70 bar), resistance to mechanical damage |
| Quick warm-up of the reducer | Suitable for use in "monofuel" systems |
Features
- Gas outlet: 12 mm for up to 180 hp and 16 mm for up to 250 hp
- Modern design solutions (casting integrity)
- and a uniform structure)
- Easy installation – central mounting screw
- Swivel connection fittings, designed for use with spring clamps
Assembly as recommended by the manufacturer
LPG i CNG
STAG QBOX , STAG QNEXT PLUS, STAG QMAX PLUS,
STAG QMAX , STAG QBOX BASIC, STAG GoFast,
STAG 400 DPI, STAG 500 GO STAG DIESEL
LPG i CNG
STAG AC W01, STAG AC W01 BFC, STAG AC W02,
STAG AC W02 BFC, STAG AC W031, STAG AC W031 BFC
LED 600
LED 300/401B, LED 300, LED 500,
LED 401, LED GoFast
Technical Materials
| Technical Specifications | STAGR01 180 HP | STAGR01 250HP |
|---|---|---|
| Fuel type | LPG | LPG |
| Material | Aluminum castings | Aluminum castings |
| Weight [g] | Regulator: 1100 g. Regulator with hose: 1330 g. | Regulator: 1100 g. Regulator with accessories: 1330 g. |
| Dimensions [mm] | 146x141x111 | 146x141x111 |
| Maximum inlet pressure | 3 MPa | 3 MPa |
| Outlet pressure | Adjustable between 0.9–1.5 bar | Adjustable between 0.9 and 1.5 bar |
| Gas inlet diameter [mm] | Ø 6.0 M10x1 | Ø8.0 M12x1 |
| Gas outlet diameter [mm] | Ø 12 | Ø 16 |
| Water outlet diameter [mm] | Ø 16 | Ø 16 |
| Vacuum connection | Ø 4 | Ø 4 |
| Maximum engine power | 110 kW/180 hp | 184 kW/250 hp |
