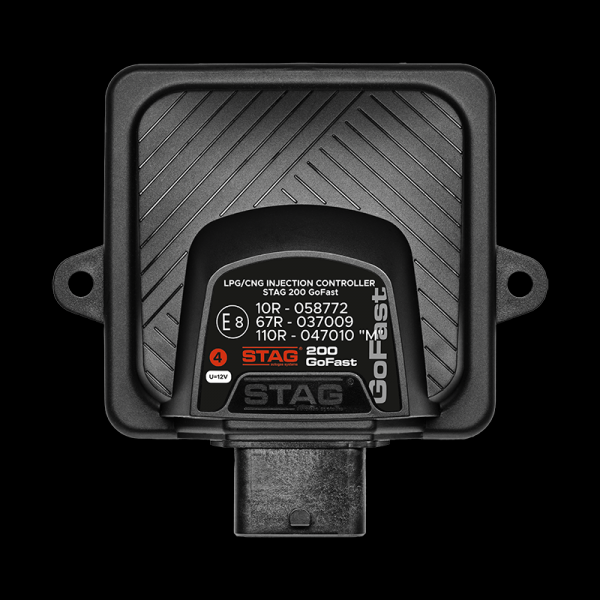

STAGGoFast
Autogas controller
Rodzaj silnika: pośredni wtrysk paliwa
Maksymalna ilość cylindrów: 4
Rodzaj paliwa autogaz: LPG i CNG
Czas gwarancji sterownika: 2 lat
Normy i homologacje: E8 67R-01 7009, E8 110R-00 7010
Indeks: WEG-AMA024409999-300
Description
Wszechstronny sterownik przeznaczony do montażu w większości samochodów (sekwencja, pół-sekwencja, „full group”). Urządzenie zostało zaprojektowane z myślą o jak największym uproszczeniu całej instalacji i znaczącym skróceniu czasu potrzebnego na montaż wraz z kalibracją systemu.
| Feature | Benefit |
|---|---|
| Few connections | Quick installation, maximum functionality |
| Quick installation | Minimized number of wires |
| Compact dimensions | Easier installation |
| Software in a single window | Ease of controller programming |
Features
- Easy calibration—all features are located on two panels—no need to switch between tabs
- Built-in Standard and Expert modes. Standard mode includes the minimum set of functions needed to configure the car. However, you can switch to Expert mode at any time with the push of a button to access the controller’s advanced features
- When the communication cable is disconnected from the PC, the controller automatically resumes transmission
- Controlling the device via Bluetooth Next
- The ability to expand the software with new features
- Ability to run the application without a driver in demo mode
- Straight connector: 32-pin
- Bluetooth connectivity
- Integration with a data logger
Assembly as recommended by the manufacturer
LPG
STAG R01 TYP 150, STAG R01 TYP 250, STAG R02, STAG R02 TWIN, STAG R02 EL
LPG i CNG
STAG AC W01, STAG AC W01 BFC, STAG AC W02, STAG AC W02 BFC,
STAG AC W031 STD, STAG AC W031 BFC,
